Vertical Woltman Dry Type Cold Water Meter Class C/R160/R200
WS2 is a dry type vertical woltman type, designed to measure the total volume of unidirectional water passing through large pipeline in sizes of 50mm to 200mm, such as tap water, well water, river water, as well as sewage, except corrosive water.
Features
* It is a vertical woltman water meter.
* Magnetic drive, lower transmission resistance.
* Magnetic shield, for external magnetic field protection.
* Removable structure, easy maintenance.
* Evacuated and sealed dry dial register and big digits ensures clear reading, long working life.
* The measuring mechanism can be removable from the body for checking, maintaining and replacing, and the body needn't be dismantled from the pipeline.
* Inter-exchangeable parts.

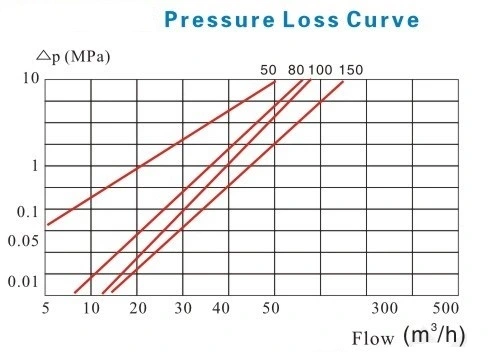

* Low pressure loss.
* Can be equipped with reed switch (register can't rotate).
Standard Compliance
Technical data conforms to ISO 4064 Class C, R160 and R200 standard.
Working Conditions
Water temperature: ≤50ºC for cold water meter
Water pressure: ≤1MPa or 1.6MPa or 4.0 MPa optional (10bar or 16bar r 40 bar optional)
Installation requirements
*Pipeline must be flushed before installation.
*The meter should be constantly full of water during operation.

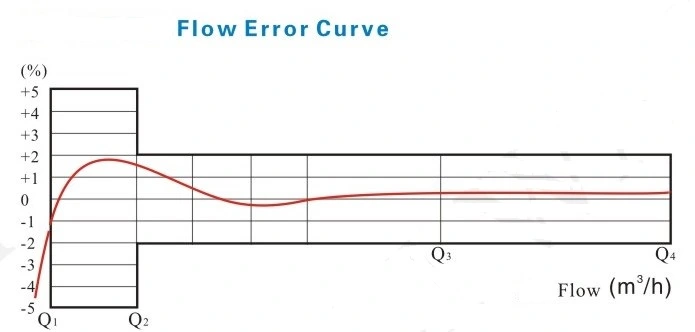

Maximum Permissible Error
In the lower zone from Qmin(Q1) inclusive up to but excluding Qt (Q2) is ±5%.
In the upper zone from Qt(Q2) inclusive up to and including Qmax(Q4) is ±2%(cold water meter).
MAIN TECHNICAL DATA According to ISO4064 :2003 (Old Standard)
| Meter Size | Measuring | Max Flow | Nominal Flow | Transitional Flow | Min Flow | Min Reading | Max Reading | |
| mm | class | m³/h | m³ | |||||
| 50 | C | 30 | 15 | 22.5 | 90 | 0.0005 | 999999 | |
| 80 | C | 80 | 40 | 60 | 240 | 0.0005 | 999999 | |
| 100 | C | 120 | 60 | 90 | 360 | 0.0005 | 999999 | |
| 150 | C | 300 | 150 | 225 | 900 | 0.005 | 9999999 | |
| 200 | C | 500 | 250 | 375 | 1500 | 0.005 | 9999999 | |
MAIN TECHNICAL DATA According to ISO4064:2005 (New Standard)
| Meter Size | Measuring | Q4 | Q3 | Q2 | Q1 | Min Reading | Max Reading |
| mm | R | m³/h | m³ | ||||
| 50 | 160 | 50 | 40 | 400 | 250 | 0.0005 | 999999 |
| 200 | 320 | 200 | |||||
| 80 | 160 | 78.7 | 63 | 630 | 393.75 | 0.0005 | 999999 |
| 200 | 504 | 315 | |||||
| 100 | 160 | 125 | 100 | 1000 | 625 | 0.0005 | 999999 |
| 200 | 800 | 500 | |||||
| 150 | 160 | 312.5 | 250 | 2500 | 1562.5 | 0.005 | 9999999 |
| 200 | 2000 | 1250 | |||||
| 200 | 160 | 500 | 400 | 4000 | 2500 | 0.005 | 9999999 |
| 200 | 3200 | 2000 |
Dimensions and Weight
| Meter size | Length L | Width W | Height H | Connecting thread | ||
| mm | mm | D | Bolt circle Dia D1 | Conncting bolt | ||
| 50 | 280 | 245 | 300 | 165 | 125 | 4xM16 |
| 80 | 370/225 | 280 | 300 | 200 | 160 | 8xM16 |
| 100 | 370/250 | 300 | 345 | 220 | 180 | 8xM16 |
| 150 | 500 | 335 | 445 | 285 | 240 | 8xM20 |
| 200 | 550 | 386 | 476 | 340 | 295 | 8xM20 |
Q1. What is our warranty?
A: 5 Years warranty. If there is any quality problem on our water meters, we would take the full responsibility.
Q2. Why choose JIANGBEI water meter?
A: We test the flow rate, demagnetize test, anti-magnetism test, pressure loss, maximum pressure test, endurance test, strictly according to ISO 4064 and EN 14154 standard. Also, we have CNAS certified water meter laboratory to make sure that our water meters can fully meet different clients requirements.
Q3. What is your terms of packing?
A: Generally, we pack water meters in strong carton, wooden pallet or wooden case. And we also can put your brand or LOGO on packaging after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery or 70% against copy of bill of lading. We'll show you the photos of your water meters and packages before you pay the balance.
Q5. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q6. How about your delivery time?
A: Generally, it will take about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order on water meters.
Q7. Can you produce according to the water meter samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. Do you test all your water meters before delivery?
A: Yes, we have 100% test before delivery.
Q9. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price on our water meters to ensure our customers benefit. 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
