Positive Displacement Water Meter
LXH-E2 is a horizontal volumetric water meter with the mechanical transmission and 320 degree ration dry register, for residential application in sizes 15mm-20mm for cold water.
Features
* Register can be 320 degree for easy reading.
* Ensures high sensitivity and accurate registration throughout a wide flow range.
* Low starting flow rate and excellent metrological performance.
* Magnetic drive, lower transmission resistance.
* Magnetic shield use for external magnetic field protection.
* Evacuated and sealed dry dial register ensures clear reading.
* Internal strainer
* Inlet strainer Standard Compliance Technical data conforms to ISO 4064 Class C, Class D, R160, R200 and R315 standard.
Optional Features
*Meter body: Brass, plastic for selecting.
*Can be equipped with reed switch option.
| Model NO. | LXH-E |
| Nominal Diameter | 15-20mm |
| Series | Volumetric Water Meter |
| Work Environment | Dry Water Meter |
| Working Pressure | 1.0 MPa or 1.60 Map |
| Dial | Dry |
| R=Q3/Q1 | 160/200 |
| Class | C/D |
| Pulse Output | With or without |
| Trademark | JIANGBEI/OEM |
| Transport Package | Export Carton |
| Specification | Brass body and brass connections |
| HS Code | 90282010 |
MAIN TECHNICAL DATA According to ISO4064 :2003 (Old Standard)

MAIN TECHNICAL DATA According to ISO4064:2014 (New Standard)

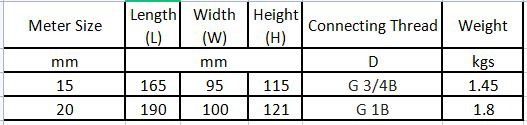

Dimensions and Weight
