Economic Copper Can Multi-Jet Turbine Water Meter
Class C/ R160 (Dry Type )
Product Introduction:
LXSC-G2 (Dn15 mm) is an economic turbine water meter for residential application for cold and hot potable water and meets the international standard ISO4064 Class B or Class C. It is with copper-can register, which can rotate for 360 degree and IP68 for a long-term clear reading.
Features：
* Body material is brass or plastic (reinforced polymerization), corrosion resistance.
* Magnetic drive and magnetic shield.
* Copper can register, IP68 protection from the environment, ensures clear reading, frost resistance and freezing resistance.
* Inlet strainer.
* Non return valve to avoid the reserve flow rate (optional);
* Pre-equipped pulse output.
* Complete solid lockable plastic shell for long lifetime to stop tampering.
*The register can be 7 rollers and 2 pointers or 6 rollers and 2 pointers.

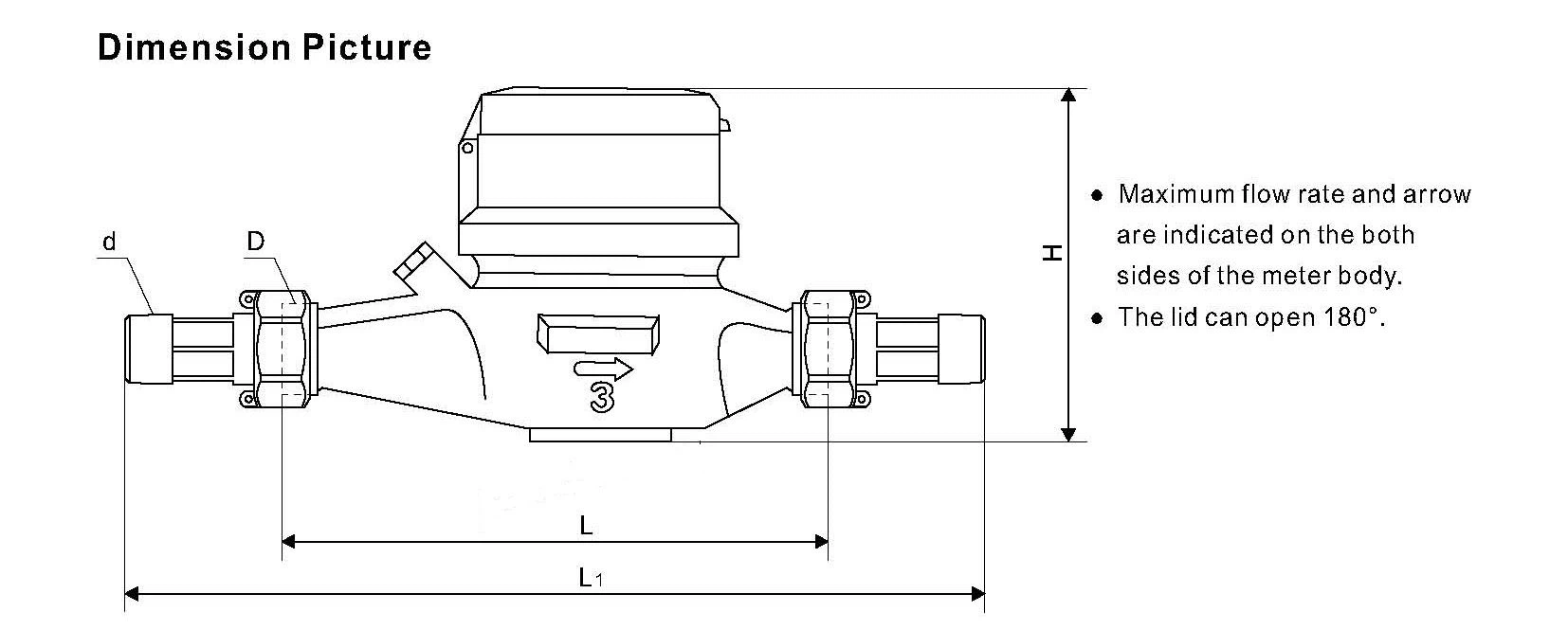

Dial Plate Design:
Main Technical Data According to ISO4064 :1993 (Old Standard)
Main Technical Data According to ISO4064:2014 （New Standard）
Maximum Permissible Error:
In the lower zone from Qmin(Q1) inclusive up to but excluding Qt (Q2) is ±5%.
In the upper zone from Qt(Q2) inclusive up to and including Qmax(Q4) is ±2%（cold water meter）.
In the upper zone from Qt(Q2) inclusive up to and including Qmax(Q4) is ±3%（hot water meter）.
Installation requirements:
* The meter should be installed in horizontal position with the direction of the flow as indicated by the arrow cast in the meter body with the register face upwards.
* Pipeline must be flushed before installation.
* The meter should be constantly full of water during operation.
* We suggest the installation of the water meter as:
