Multi Jet Wet Type Analog Water Meter
(Class C/R160)
Product Introduction:
LXS-Es2 (Dn 15mm-50mm) is a plastic turbine wet analog water meter with 360 degree rotating lid for residential application in sizes 15mm-50mm for cold water. This plastic water meter is frequently used as a low cost solution for residential water measuring.
Features:
*360 degree rotating lid for a easy reading in different directions.
*Wet counter, small starting flow.
*Plastic body material is Nylon 66 or GV5H (a high pressure requirement)
*Lead-free.
*Meter body: Brass, plastic, iron and stainless steel for selecting.
* Inlet strainer.
*Non return valve
*Pulse output can be equipped as requested.
*Water temperature:≤T50.
*Working pressure: ≤1.0 Mpa or 1.6 Mpa.
*Pressure loss: △P63
*The counter can be 8 digits and 1 pointer or 5 digits and 4 pointers.
Specification:

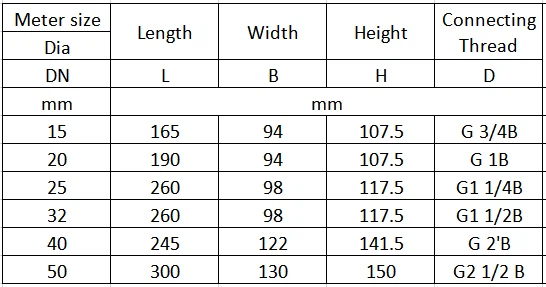

Dimensions:
