Multi Jet Liquid Sealed Water Meter Gauge
Product Introduction:
LXS-15F~65F are vane wheel multi-jet liquid-sealed water meter gauges. The meter gears or the complete register used for meter reading is all sealed with a certain concentration of glycerin.
The clarity of the sealed and isolated register of the rotary vane wheel multi-jet liquid-sealed water meter gauge is not affected by the external water quality, and the remaining structural performance is the same as that of the wet water meter gauge.
Features:
* Horizontal installation.
* Multi-jet.
* Mechanical transmission
* The digital wheel of the register is encapsulated with special liquid, which can keep the reading clear for a long time.
* It has the advantages of small starting flow of wet water meter and clear reading of dry water meter, especially suitable for pipe networks with poor water quality
* Using high-quality materials, stable and reliable performance.
* The measurement accuracy reaches ISO 4064 Class C or R160.
* The same model of high-sensitivity water meter can be produced according to user needs.
* The brass body can be original color or eposy coating; in addition, plastic case, iron case and stainless steel case are available
* Applicable to cold water ≤50℃.
* Water pressure: ≤1.6MPa (16bar)

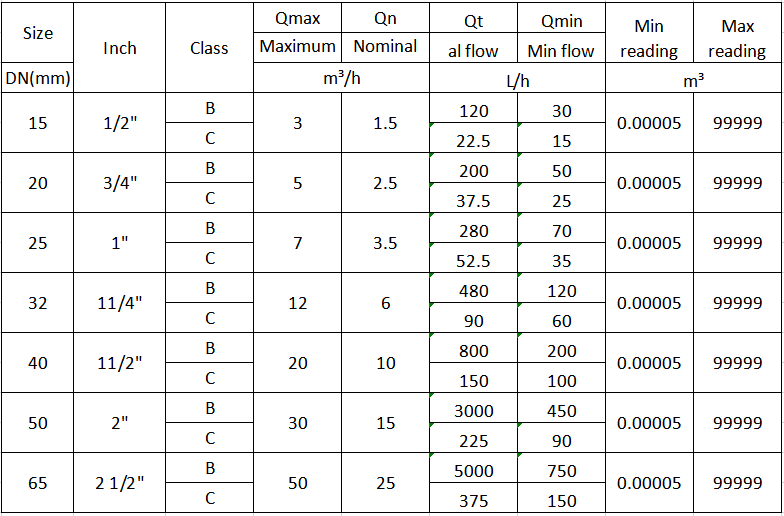

Specification:
Facilities:
