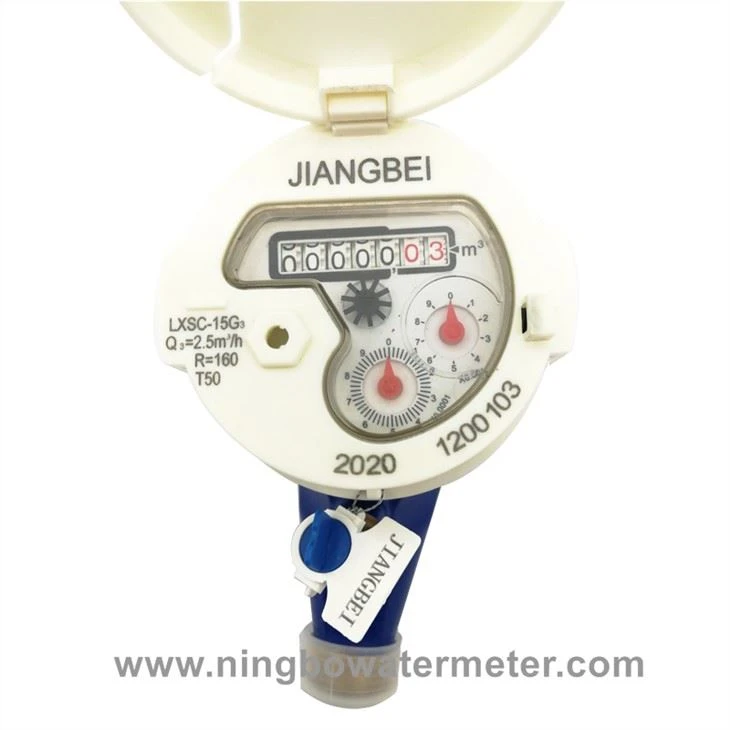

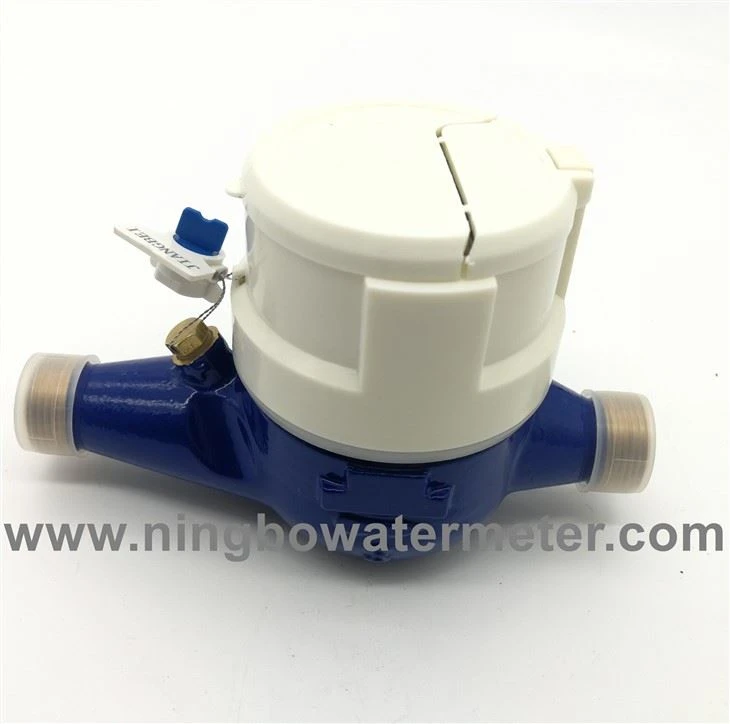

Economic Multi Jet Class C Smart Water Meter
LXSC-G3 is a 15mm (1/2”) newly developed multi jet super dry smart water meter on the basis of LXSC-G2 for residential application of cold and hot type both, meeting the international standard ISO4064 Class B or Class C. It can be attached with a NBIoT, Lora or Lorawan modules.
Specifications:
Service: Water.
Body material: brass or plastic.
Flow Range: See chart below.
Accuracy:Transitional Flow: ±5%; Nominal Flow: ±2%
Temperature Limit：T50 (cold smart water meter); T90 (hot smart water meter).
Pressure Limit: 232 psi (16 bar).
Register Display: 6 digits and 2 pointers or 7 digits and 2 pointers.
Tantalizing Display Maximum:9,999 or 99,999
Mounting Orientation: Horizontal.
Module: NBIoT/Lora/Lora wan
Features
* NBIoT or Lora or Lora wan module can be used.
* Body of light weight.
*Multi jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications.
*All the materials in contact with water are meeting potable water standard.
*Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water (Plastic can register or Copper can register for your choice).
*Magnetic shield, for external magnetic field protection.
*Designed for long service life and maintenance-free operation, even under harsh conditions.
*Integral strainer that protects meter from particulate damage.
* Non return valve to avoid the reserve flow rate (optional).
*Easy installation with included coupling adapters.
Meter size | Length | Width | Height | Connecting Thread |
Dia | ||||
DN | L | W | H | D |
mm | mm | |||
15 | 165 | 80 | 109 | G 3/4B |
Main Technical Data According to ISO4064 :1993 (Old Standard)
Size | Inch | Class | Qmax | Qn | Qt | Qmin | Min reading | Max reading |
Maximum flow | Nominal flow | Transitional flow | Min flow | |||||
DN(mm) | m³/h | L/h | m³ | |||||
15 | 1/2" | B | 3 | 1.5 | 120 | 30 | 0.00002 | 99999 |
C | 22.5 | 15 | ||||||
Main Technical Data According to ISO4064:2014 （New Standard）
Size | Inch | R | Q4 | Q3 | Q2 | Q1 | Min reading | Max reading |
Overload flow | Nominal flow | Transitional flow | Min flow | |||||
DN(mm) | m³/h | L/h | m³ | |||||
15 | 1/2" | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.00002 | 99999 |
100 | 40 | 25 | ||||||
125 | 32 | 20 | ||||||
160 | 25 | 15.625 | ||||||
Installation requirements:
* The smart water meter should be installed in horizontal position with the direction of the flow as indicated by the arrow cast in the meter body with the register face upwards.
* Pipeline must be flushed before installation.
* The smart water meter should be constantly full of water during operation.
* We suggest the installation of the smart water meter as:
