Multi Jet Wet Type Vane Wheel Water Sub Meters
（Class C/R160)
Product introduction:
LXS-15E~ 65E (cold water) and LXSR-15E~ 65E (hot water) are rotary vane wheel multi-jet wet water sub meters. The register is immersed in water, the glass is subjected to water pressure, and the transmission between the sensor and the register is by gears. After a period of use, the quality of the water will affect the clarity of the water sub meters’ reading. In interior design, the rotary multi-jet wet water sub meters should be used first.
Working Principle:
The working principle of the rotor multi-jet wet water sub meters is: water enters the case from the water sub meter inlet, passes through the water filter, enters the impeller housing from the water inlet, impacts the impeller, the impeller starts to rotate, and the water flows from the upper part of the impeller housing. The water outlet flows into the pipe through the water outlet of the meter body, and the lower part of the impeller is supported by a thimble. After the impeller rotates, the upper central gear is also rotated through the central shaft of the impeller, driving the transmission gear in the impeller box to rotate according to the speed ratio, and driving the pointer on the dial. After the triangular pointer starts to rotate, it drives the other gears and the upper pointer in a decimal transmission mode, and starts to rotate in a clockwise direction from 0 according to the index value on the dial to start measuring.
Features:
1. Multi-jet.
2. Mechanical transmission
3. Wet counter, small starting flow, keep the counting mechanism full, good anti-fouling performance, easy to read.
4. Counter types are C type with pointer, E type with combination of word wheel and pointer.
5. Horizontal installation
6. High technical precision and small starting flow.

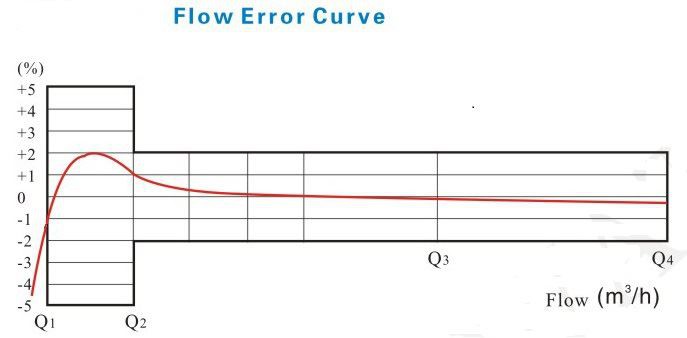

7. The measurement accuracy reaches ISO4064 Class B or Class C (R80/100/125/160) standards
8.The starting flow of high-sensitivity water meter ≤ 2 L/h.
9. It can keep the counter mechanism full (filled with water), has good anti-fouling performance, convenient reading, beautiful appearance, safety and health, and long service life.
10. The same model of high-sensitivity water meters can be produced according to user needs.
11. The copper case can be sprayed or natural color; in addition, there are plastic case, iron case and stainless steel case to choose from
12. Temperature class: cold≤T50/hot T90
13. Pressure rating: MAP10/MAP16
14. Pressure loss grade: △P63
15. The counter can be 8 digits and 1 pointer or 5 digits and 4 pointers.
16. The remote pulse output function can be added according to user requirements
Specification:
Dimensions:
