Application

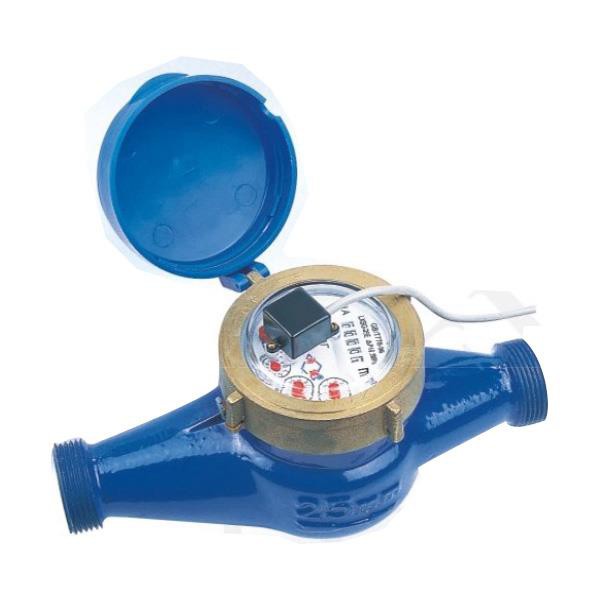

Remote Water Meter is designed to measure cold (hot)potable water in residential settings. Being with pulse transmitting sensor, it could be used as the mechanical meter for remote reading system.
Standards
Complies with: ISO 4064 (equivalent to GB/T778-2007),MID14154
Features
●Sensor selection: reed switch, Hall element, optoelectronic component, etc.
●Remote Water Meter uses reliable sensors to resist interference and has a long service life
●Remaining original technical parameters
●Remaining original display function
●Special structural design, advanced test methods, and reliable signal acquisition.
●The maximum transmission distance from the water meter to the data collector is 150 meters.
●The series has a wide range of applications and can be matched with various data collectors.
● dry, wet, cold, cold
●A part of it could be impreved from ordinary water meters
Structure Principle and Features:
With sensitive sensors and strong anti-interference function. this water meter can collect accurate water consumption datas from a long distance. Remote Water Meter is provided with remote transmitting function by the improvement of register structure and remains the original measurement function,can be connected with computer for the concentrated management.The maximum transmitting distance from water meter to data collector is 150 meters.
One or more remote reading meters could be connected according to data collector system. This type of water meter could be widely working with most of the data collectors.
Flow Technical data
TYPE | mm | Q3/Q1 | Q4 | Q3 | Q2 | Q1 | Min | Max |
m³/h | L/h | m³ | ||||||
LXSY-15E | 15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.00005 | 99999 |
100 | 40 | 25 | ||||||
125 | 32 | 20 | ||||||
160 | 25 | 15.62 | ||||||
LXSY-20E | 20 | 80 | 5.0 | 4.0 | 80 | 50 | 0.00005 | 99999 |
100 | 64 | 40 | ||||||
125 | 51.2 | 32 | ||||||
160 | 40 | 25 | ||||||
LXSY-25E | 25 | 80 | 7.875 | 6.3 | 126 | 78.75 | 0.00005 | 99999 |
100 | 100.8 | 63 | ||||||
125 | 80.64 | 50.4 | ||||||
160 | 63 | 39.73 | ||||||
LXSY-32E | 32 | 80 | 12.52 | 10 | 200 | 125 | 0.00005 | 99999 |
100 | 160 | 100 | ||||||
125 | 128 | 80 | ||||||
160 | 100 | 62.5 | ||||||
LXSY-40E | 40 | 80 | 20 | 16 | 320 | 200 | 0.00005 | 99999 |
100 | 256 | 160 | ||||||
125 | 204.8 | 128 | ||||||
160 | 160 | 100 | ||||||
LXSY-50E | 50 | 80 | 31.25 | 25 | 500 | 312.5 | 0.00005 | 99999 |
100 | 400 | 250 | ||||||
125 | 320 | 200 | ||||||
160 | 250 | 156.25 | ||||||
LXSY-65E | 65 | 80 | 50 | 40 | 800 | 500 | 0.00005 | 99999 |
100 | 640 | 400 | ||||||
125 | 512 | 320 | ||||||
160 | 400 | 250 |
Maximum Permissible error
Accuracy between Q1 and Q2±5%
Accuracy between Q2 and Q4±2%(±3%for hot water)
Manual
1. LXSY-15E-65E ,LXSRY-15E-65E(Multi-jet wet type cold (hot) remote reading water meter).See the above table for main technical parameters.Size:15mm,20mm,25mm,32mm,40mm,50mm,65mm.See the dimensions and weight table of LXS-15E-65E, LXSR-15E-65E.Sensors options: reed switch, hall elements and photoelectric elements.
2. LXSCY-13D-25D, LXSCRY-13D-25D ( Single-jet dry type cold (hot) remotereading water meter).See the above table for main technical parameters.Size:15mm,20mm,25mm.See the dimensions and weight table of LXSC-13D-25D, LXSCR-13D-25D.Sensors options: reed switch, hall elements and photoelectric elements.
3. LXSGY-15E-50 E, LXSGRY-I5E-50E,( Multi-jet dry type cold (hot) remote reading water meter).See the above table for main technical parameters.Size:15mm,20mm,25mm,32mm,40mm,50mm.See the dimensions and weight table of LXSG-15E-65 E, LXSGR-15E-65E. Sensors options: reed switch, hall elements.
4. LXHY-8( Rotary piston remote reading purified water meter). See the above table for main technical parameters. Size: 8mm. See the dimensions and weight table of LXH-8.
Sensors options: reed switch, hall elements. Pulse constant: I pulse/L
Rrmarks:
1. Pulse constant could be decided bv clients
2. Wire length is generally 0.6m to 1m(decided by the clients).
3. Wire can be equipped with stainless protective cover; the length is 500mm to 900mm. The connectors'thread is M8x1, 5mm.
Wire connection methods:
a. Reed switch sensors, two core cable, without polarity.
b. Hall elements, three core cable. the red is power (3-3.6V), the green is output,the black is the commons
c. Opto electronic elements, four core cable. the red is power (4.5-15V). the green is output, the yellow is backup detection end, and the black is the commons.
WORKING CONDITION
Working temperature for cold water meter: +0.1℃~+50℃
Working temperature for hot water meter: +0.1℃~+90℃
Head loss:△P63
Working pressure≤1. 0Mpa
